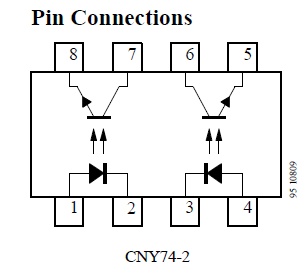

Optocoupleur Phototransistor 2 canaux DIL8

Input (Emitter) Parameters Test Conditions Symbol Value Unit Reserve voltage VR 6 V Forward current IF 60 mA Forward surge current tp 3 10 s IFSM 1.5 A Power dissipation Tamb 3 25°C PV 100 mW Junction temperature Tj 125 °C Output (Detector) Parameters Test Conditions Symbol Value Unit Collector emitter voltage VCEO 70 V Emitter collector voltage VECO 7 V Collector current IC 50 mA Peak collector current tp/T = 0.5, tp 3 10 ms ICM 100 mA Power dissipation Tamb 3 25°C PV 150 mW Junction temperature Tj 125 °C
