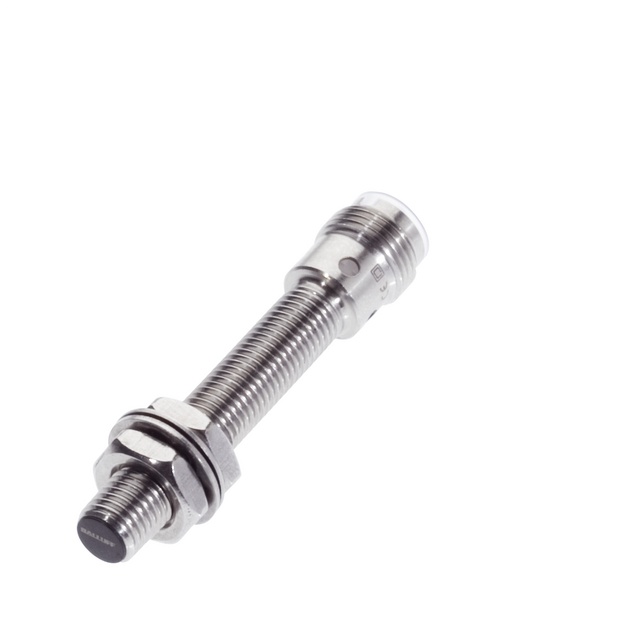

Capteur inductif
détecteur inductif M8 avec connecteur M12
| Reference: | BES M08EH-POC15B-S04G |
| Code fournisseur: | BES01PE |
| Code commande: | 1021-8358 |
| Disponibilité: | sous 10 jour(s) |
Caracteristiques
| Poids: | 50g |

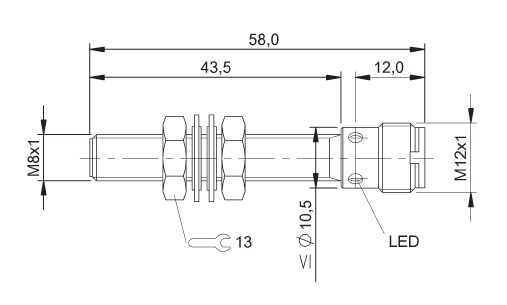

| Dimensions: | 8 x 58 mm |
| Forme: | M8 |
| Type de sortie: | DC PNP |
| Fonction de sortie: | NF |
| Tension d'alim (min/max) min: | 10V |
| Tension d'alim (min/max) max: | 30V |
| Raccordement: | connecteur M12 |
| Nombre de fils: | 4 |
| Montage cap: | NOYABLE |
| Indice de protection: | IP68 |
| Portée nominale (min/max) min: | 0mm |
| Portée nominale (min/max) max: | 1.5mm |
